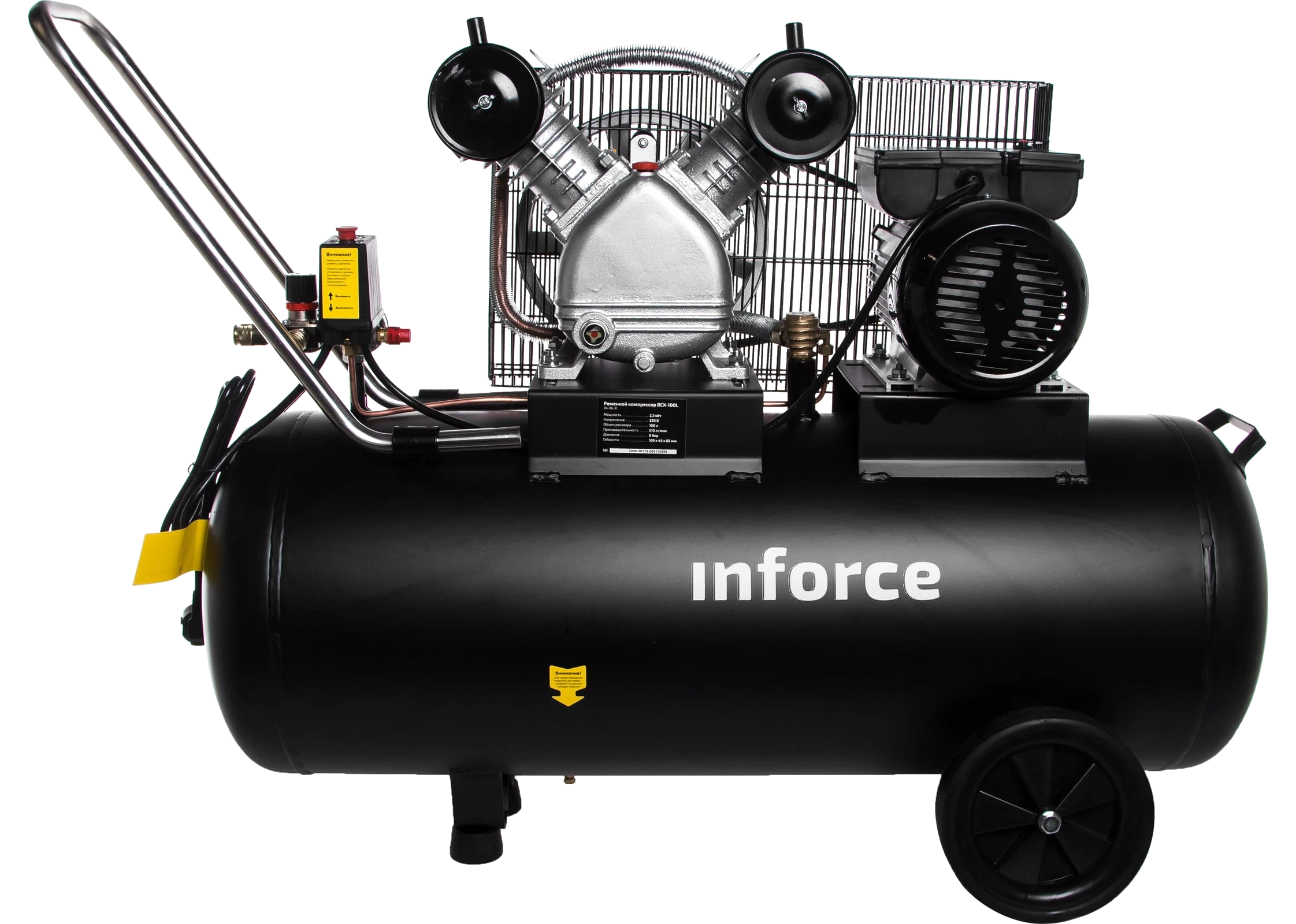

Belt-driven compressor BCX-100L 04-06-31
220 VVoltage 510 l/minPerformance 10 barWorking pressure
A belt-driven 100 l compressor for high volumes of compressed air. It runs from a 220 V supply, takes up to two pneumatic tools and holds up to long uninterrupted sessions.
Descrição
The INFORCE BCX-100L belt-driven compressor is intended to produce compressed air in large volumes. This model runs from a 220 V supply.
Up to two pneumatic tools can be connected to the compressor at the same time. The unit is built for reliability and can run for long periods without a break.
Materials:
- Cylinder: cast iron;
- Piston: aluminum alloy;
- Head: aluminum alloy;
- Tubes: copper;
- Induction motor winding: aluminum.
The compressor should be stored indoors at temperatures from +5 °C to +50 °C and a relative humidity of 80%.
Especificações
| Voltage | 220 V |
|---|---|
| Performance | 510 l/min |
| Working pressure | 10 bar |
| Speed | 2850 rpm |
| Connection diameter | 1/4 |
| Performance on input | 510 l/min |
| Performance on output | 410 l/min |
| Receiver tank volume | 100 l |
| Frequency | 50 Hz |
| Compressor type | Belt drive |
| Power | 2.3 kW |
| Power | 3 hp |
| Transport wheels | No |
| Lubrication type | Oil-lubricated |
| Connection type | Rapid (EURO) |
| Frequency converter | No |
| Number of outlets | 2 |
| Motor/engine type | Electric |
| Cylinders | 2 |
| Steps | 1 |
| Shape | Horizontal |
| Cable power V kit | Yes |
| Noise level, min | 85 dB |
| Dimensions (unpackaged) | 1050x420x830 mm |
| Net weight | 67 kg |
Conteúdo da embalagem
- Compressor
- Operating manual
- Packaging
Embalagem
| Peso | 73 kg |
|---|
