Labels and markings on the product shown may differ from those on units supplied to your market.
01-05-05Profissional

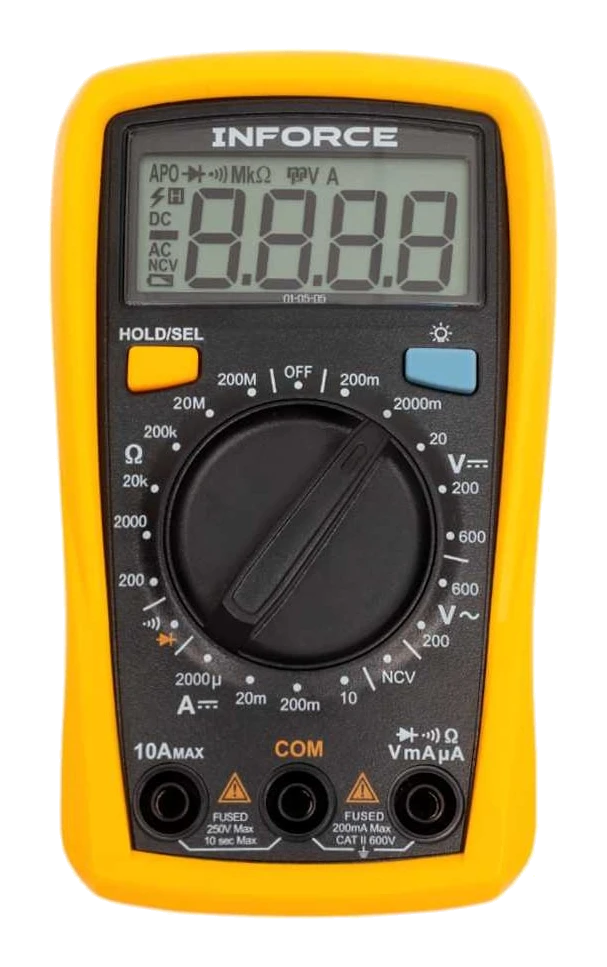

Pocket multimeter with continuity tester 01-05-05
2 x 1.5 VBattery count & voltage 3 xMeasurements per second 2000Digit count
A portable multimeter with continuity test for DC and AC voltage, DC current and resistance. A backlit display, full overload protection and a protective holster suit it to work away from the bench.
Descrição
The INFORCE portable multimeter with continuity test measures DC and AC voltage, DC current and resistance.
The LCD has a backlight, which makes work easier in poorly lit places.
The instrument is fully protected against overloads, which keeps it safe in use.
The protective holster makes the instrument resistant to mechanical damage if it is dropped.
Especificações
| Tool type | Multimeter |
|---|---|
| Display type | Digital |
| Calibration | No |
| Listed V state register | No |
| True RMS | No |
| NCV (non-contact voltage) function | No |
| Measures temperature | No |
| Capacitance measurement | No |
| Measures frequency | No |
| Measures resistance | No |
| Measures force constant current | No |
| Measures force variable current | No |
| Measures station./variable. voltage | No |
| Battery test | No |
| Continuity test | Yes |
| Diode test | Yes |
| Low-battery indicator | Yes |
| Indicator overload | Yes |
| Indicator polarity | Yes |
| Backlit display | Yes |
| Hold function | Yes |
| Protective holster | Yes |
| Batteries | AAA (R03; LR03; FR03) |
| Battery count & voltage | 2 x 1.5 V |
| Measurements per second | 3 x |
| Digit count | 2000 |
| AC voltage | 600 V |
| Max AC voltage | 600 V |
| DC voltage | 600 V |
| Max DC voltage | 600 V |
| Constant current | 10 A |
| Min constant current | 0 A |
| Max constant current | 10 A |
| Variable current | 0 A |
| Min variable current | 0 A |
| Max variable current | 0 A |
| AC frequency range | 0 Hz |
| Resistance | 200 MΩ |
| Input impedance | 10 MΩ |
| Capacity | 0 µF |
| Inductance, H | Not measured |
| Transistor gain (hFE) | - |
| Operating temperature | 0...40 °C |
| Separate switch | No |
| Auto shut-off | Yes |
| Range selection | Manual |
| Capability transmission data | No |
| Accuracy class | 0.5-1 |
| Size tester | 134x77x47 mm |
| Dimensions (unpackaged) | 47x77x134 mm |
| Net weight | 0.206 kg |
Conteúdo da embalagem
- Multimeter
- Test leads
- 1.5 V AAA batteries - 2 pcs.
- Packaging
- User manual
Embalagem
| Peso | 0,1 kg |
|---|
