06-19-18Profesional

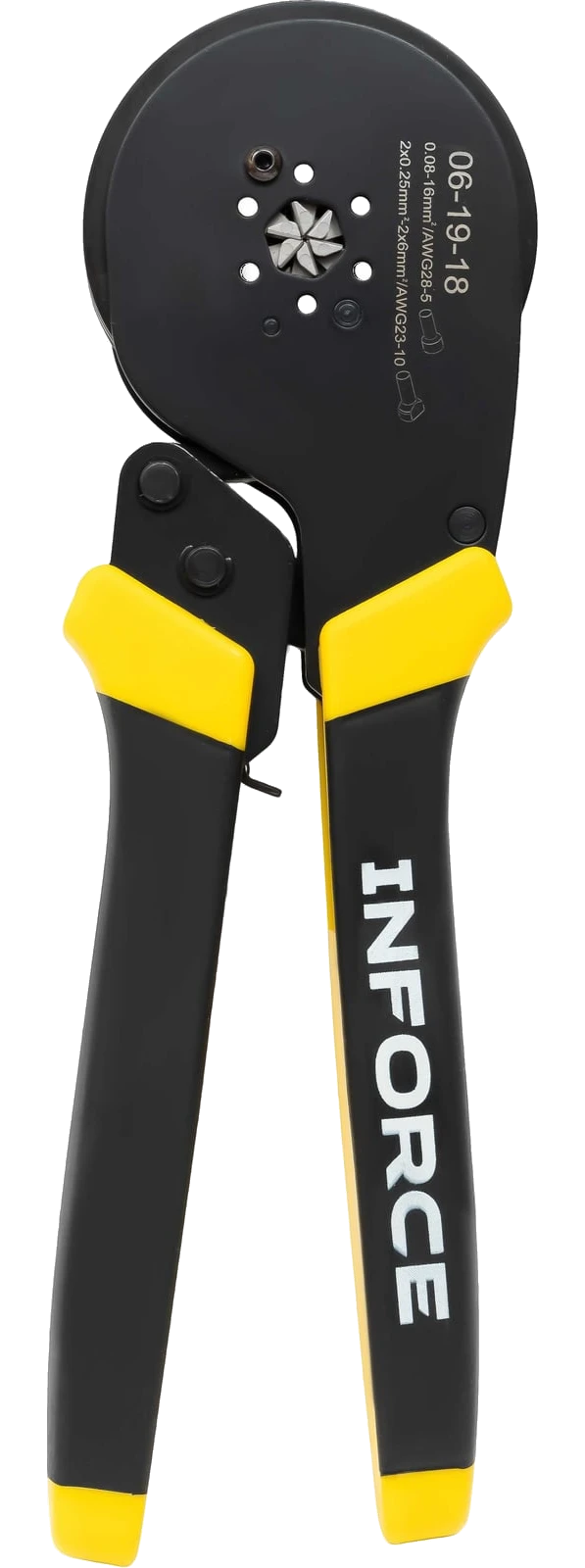

Hexagonal crimping pliers 0.08-16 mm², PTFE-coated 06-19-18
0.08-16 mm²Insulated terminal cross-section 0.08 mm²Min insulated terminal cross-section 16 mm²Max insulated terminal cross-section
Professional crimping pliers with a hex crimp profile and a self-adjusting die for wire-end ferrules from 0.25 to 16 mm2. The PTFE coating protects the body against corrosion.
Descripción
These hex crimping pliers crimp insulated and non-insulated wire-end ferrules with a cross-section of 0.25-16 mm2. The self-adjusting die adapts automatically to the size of the ferrule. The pliers are built for professional use and withstand heavy loads.
- Rubberized handles with finger stops give a comfortable grip and easy handling.
- The PTFE coating protects the body from aggressive media and corrosion and extends the service life of the tool.
- The ratchet mechanism ensures a complete crimping cycle, so every ferrule is crimped correctly. A ratchet release device is fitted.
Additional specifications:
- Hardness of the working parts - 48-52 HRC
- Serrated hex crimp profile
- Crimping force adjuster
- Body material: steel
- Return spring
- Weight: 0.48 kg
Características
| Type | For ferrules |
|---|---|
| Cross-section wire for removing insulation | No mm² |
| Min cross-section wire for removing insulation | No mm² |
| Max cross-section wire for removing insulation | No mm² |
| Removal insulation | No |
| Pipe threader | No |
| Insulated terminal cross-section | 0.08-16 mm² |
| Min insulated terminal cross-section | 0.08 mm² |
| Max insulated terminal cross-section | 16 mm² |
| Uninsulated (Al) terminal wire range | 0.08-16 mm² |
| Min uninsulated (Al) terminal wire size | 0.08 mm² |
| Max uninsulated (Al) terminal wire size | 16 mm² |
| Bare terminal cross-section (Cu) | No mm² |
| Ferrule terminal cross-section | 0.08-16 mm² |
| Min ferrule terminal cross-section | 0.08 mm² |
| Max ferrule terminal cross-section | 16 mm² |
| Ferrule (NSHVI2) wire range | 0.5-6 mm² |
| Min ferrule (NSHVI2) wire size | 0.5 mm² |
| Max ferrule (NSHVI2) wire size | 16 mm² |
| Terminal wire range | No mm² |
| Terminals | No |
| NSHVI/NSHVI(2) ferrules | No |
| Insulated terminals & sleeve | No |
| Copper and aluminium terminals | No |
| Min size bolts for bolt cutting | No |
| Max size bolts for bolt cutting | No |
| Size bolts for bolt cutting | No |
| Connectors RJ | No |
| RJ connector type | No (no RJ socket) |
| For RG cable | No |
| Connectors F & BNC | No |
| Connector Dupont 2.54 | No |
| Crimp profile | Hex |
| Dimensions (unpackaged) | 228x81x35 mm |
| Net weight | 0.48 kg |
Contenido del paquete
- Crimping pliers - 1 pc.
- Packaging - 1 pc.
Embalaje
| Peso | 0,5 kg |
|---|
