Plasma cutting inverter CUT-40 04-08-05

Labels and markings on the product shown may differ from those on units supplied to your market.

04-08-05Professional

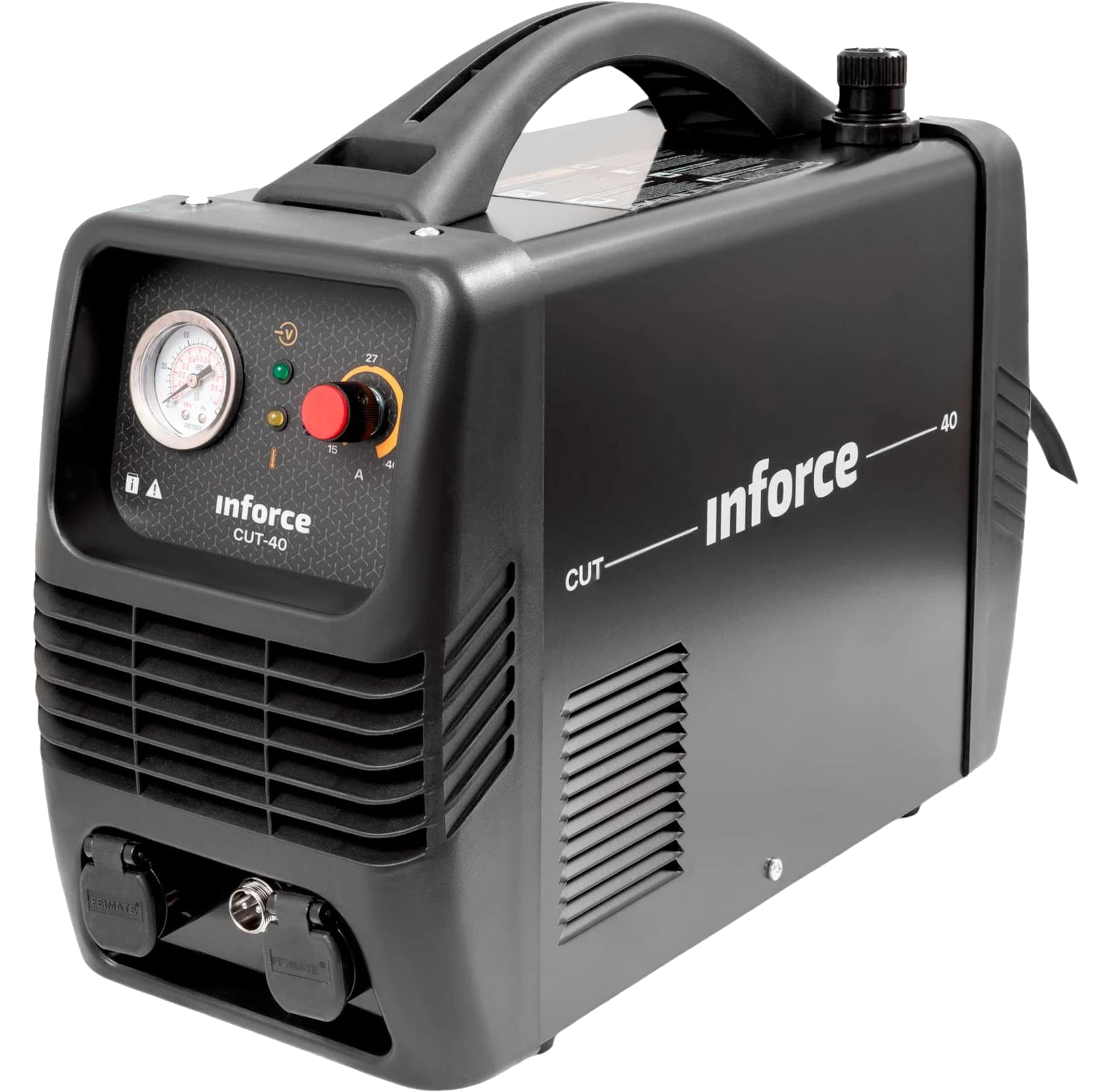

Plasma cutting inverter CUT-40 04-08-05

  • 31Torch/cutter type
  • 220(230) VVoltage
  • 6.2 kWMax power

A professional CUT-40 plasma cutting inverter on an IGBT platform. It severs steel up to 15 mm thick, cuts any conductive material and lets you set torch post-flow to save consumables.

Warranty: 24 months

Description

The INFORCE CUT-40 plasma cutting inverter is intended for professional use.

The modern IGBT platform copes with higher voltage thanks to the extra headroom it provides. The post-flow time of the plasma torch after the cut can be set, which protects the torch from premature wear and saves on consumables. The machine suits any conductive material: all types of steel, copper and its alloys, and aluminum. Severance cutting thickness in steel is up to 15 mm. The machine requires a compressor delivering 170 l/min of air at a pressure of 4-5 bar. The torch cathodes have two working positions: if a cathode is worn on one side, it can be turned around and cutting continued. The front panel carries the knobs for cutting current and post-flow time after a session, together with indicators for power, overheating and fault. The lower part of the machine holds the torch socket and the return cable socket, with the torch control connector between them.

Specifications

Specifications
Type Inverter
Torch/cutter type 31
Voltage 220(230) V
Max power 6.2 kW
Max air flow 200 l/min
Max pressure 6 bar
Max cutting thickness 15 mm
Min current 20 A
Max current 40 A
Duty cycle at max current 75 %
Mains plug included Yes
Euro connector No
Arc ignition High-frequency non-contact (HF)
CNC connection No
Built-in compressor No
Wheels No
Dimensions (unpackaged) 432x174x331 mm
Net weight 9.5 kg

Package contents

  • CUT-40 plasma cutter
  • Power cable 2.2 m / 3x2.5 mm2
  • Ground clamp with cable 200 A / 3 m 16 mm2
  • PT-31 plasma torch / 6 m
  • Air hose 3 m / 8x14
  • Worm drive clamp - 1 pc.
  • Cathode - 4 pcs.
  • Nozzle - 4 pcs.
  • Manual

Packaging

Weight9.5 kg
