Labels and markings on the product shown may differ from those on units supplied to your market.
IMIG-160SProfessional

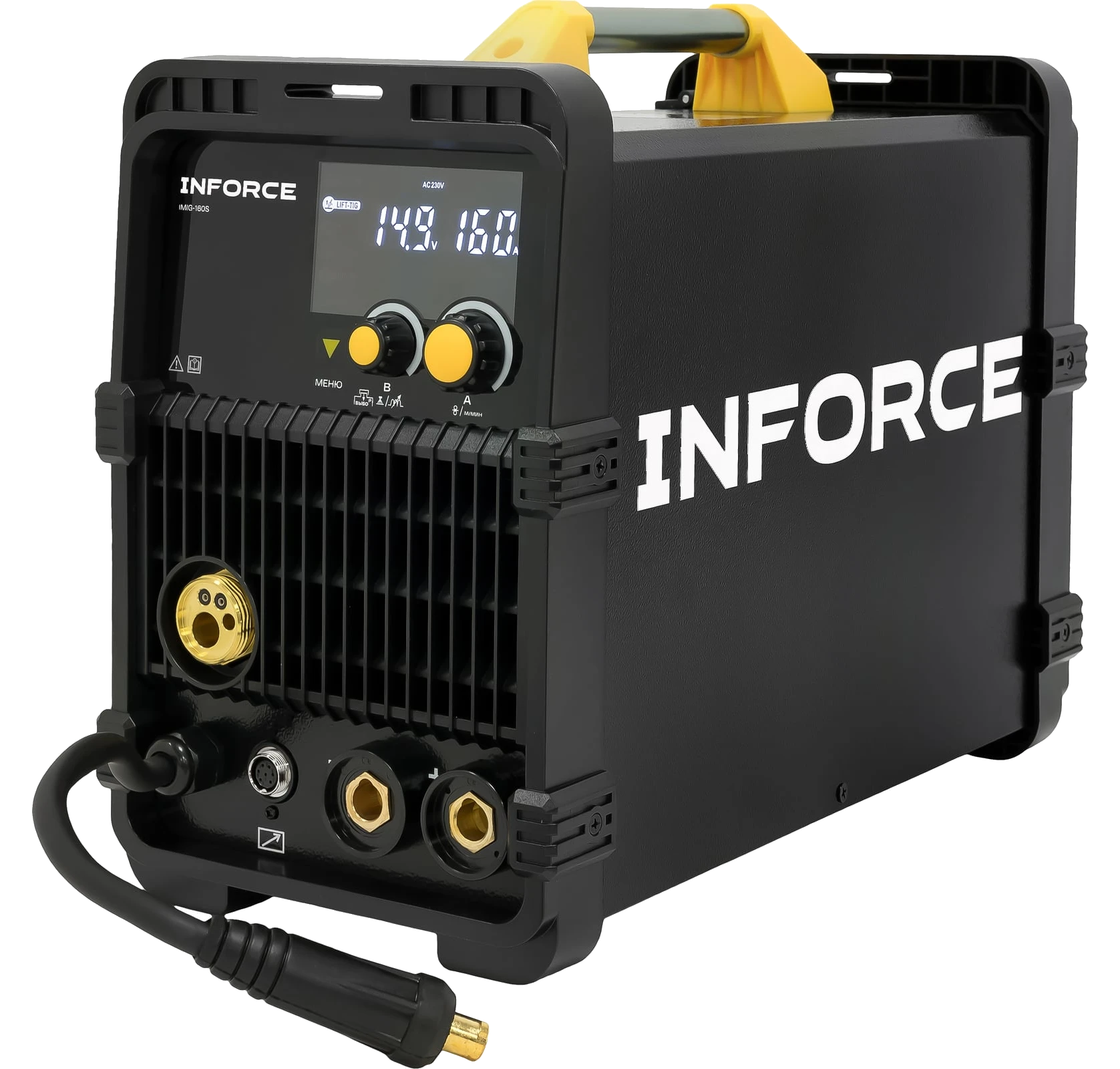

Inverter MIG welder IMIG-160S
160 AMax current 15 AMin current 140 AMax welding current MMA
A versatile inverter MIG welder with MMA, MIG-MAG and lift TIG processes and 2/4-stroke operation of the MIG torch.
Description
The INFORCE IMIG-160S inverter MIG welder is a versatile machine. Several welding processes are available: MMA, MIG-MAG and lift TIG, with 2/4-stroke operation of the MIG torch.
Specifications
| Type | Inverter |
|---|---|
| Welding mode | Gas/gasless |
| Max current | 160 A |
| Min current | 15 A |
| Max welding current MMA | 140 A |
| Min welding current MMA | 20 A |
| Max welding current MIG-MAG | 160 A |
| Min welding current MIG-MAG | 30 A |
| Max power | 6.2 kW |
| Duty cycle at max current | 40 % |
| No-load voltage | 68 V |
| Rated input voltage | 220 V |
| Voltage tolerance | 15 % |
| Welding type | MIG/MAG, MMA, TIG Lift |
| Low-voltage operation | No |
| Min input voltage | 180 V |
| Presence of synergy | No |
| IP rating | IP21 |
| Connector torch | EURO |
| Torch cooling | Air |
| Torch length | 3 m |
| Max wire diameter | 1 |
| Min wire diameter | 0.8 |
| Max electrode diameter | 3.2 mm |
| Min electrode diameter | 1.6 mm |
| Feed rollers | 2 |
| Connector MMA | DX25 |
| Welding MMA | No |
| TIG welding | No |
| Pulse welding mode | No |
| Welding aluminium | No |
| Water cooling included | No |
| Digital display | No |
| Certificate NAKS | No |
| Euro spool | D100/D200 |
| Mains plug included | Yes |
| Case | No |
| Dimensions (unpackaged) | 428x211x316 mm |
| Net weight | 8 kg |
Package contents
- Inverter MIG welder — 1 pc.
- MIG welding torch — 1 pc.
- Ground clamp — 1 pc.
- Gas hose — 1 pc.
- Screw hose clamp — 2 pcs.
- Straight contact tip — 1 pc.
- Feed roller — 1 pc.
- Universal wrench — 1 pc.
- TIG torch with vertical adjustment — 1 pc.
- User manual — 1 pc.
Packaging
| Weight | 8.4 kg |
|---|
