04-03-17Professional

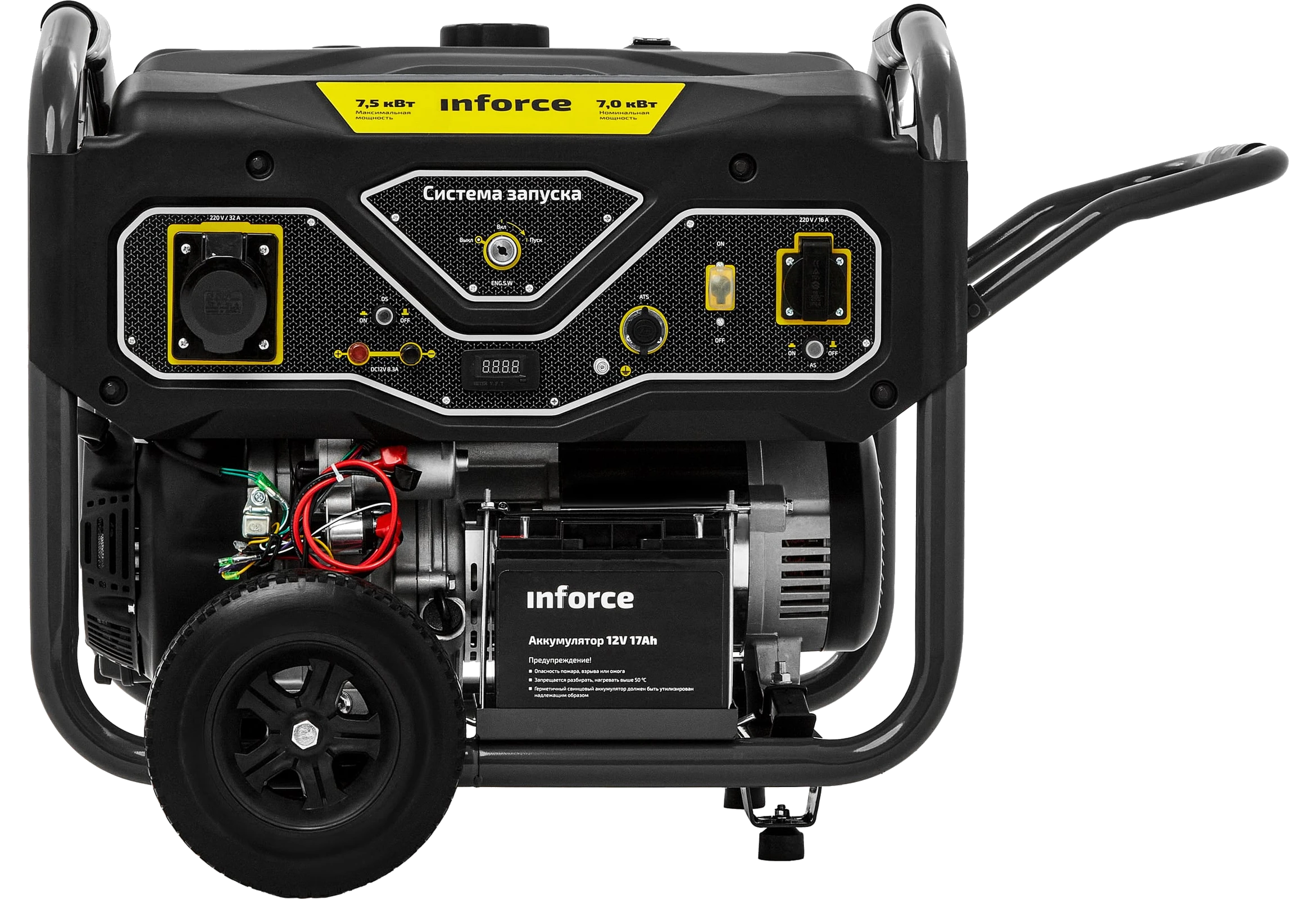

Gasoline generator GL 7500 04-03-17
220 VVoltage 7.5 kWMax power 7.5 kWMax power at 220 V
A 7.5 kW gasoline generator with an 8-pin ATS connector for automatic transfer. It works as a backup source for a house or a small construction site, using 300 g/kWh of fuel.
Description
The INFORCE GL 7500 gasoline generator, which can be connected to an automatic transfer switch, is a powerful piece of power equipment. The unit is intended for use as a backup power source in an emergency or in places far from the mains.
ATS connector type - 8 pin
The generator suits a country house or a small construction site. The maximum load is 7.5 kW.
Fuel consumption: 300 g/kWh.
Attention. Before operation, to avoid damage, remove the transport support at the rear of the alternator cover housing.
The ignition keys are under the tank cap.
Patented cooling system:
- new design of the engine cooling fins,
- materials with improved heat dissipation
The OHV layout reduces oil consumption, extends engine life and lowers the risk of cylinder distortion.
Specifications
| Type generator | Mobile |
|---|---|
| Type fuel | Gasoline |
| Voltage | 220 V |
| Starter | Recoil starter/electric starter |
| Max power | 7.5 kW |
| Max power at 220 V | 7.5 kW |
| Rated power at 220 V | 7 kW |
| Electrical outlets 380/220/12 V | -/2/1 pcs |
| Alternator | Synchronous |
| Battery V kit | Yes |
| Fuel tank capacity | 25 l |
| Fuel consumption | 3.8 l/h |
| Noise level | 82 dB |
| Speed | 3600 rpm |
| Motor/engine type | Four-stroke |
| Model engine | 192F |
| Manufacturer engine | Lutian |
| Engine displacement | 439 cm³ |
| Engine/motor power | 14.5 |
| IP rating | IP23 |
| Force current sockets 380/220/12 | -/16(32)/8.3 A |
| Control voltage | AVR |
| Indicator level fuel | No |
| Meter engine hours | No |
| 12 V output | No |
| Sensor oil | No |
| Euro connector Schuko 230V/10A | No |
| Euro connector Schuko 230V/16A | No |
| Heavy-duty connector CEE 230V/16A | No |
| Heavy-duty connector CEE 230V/32A | No |
| Heavy-duty connector CEE 380V/16A | No |
| Heavy-duty connector CEE 380V/32A | No |
| Container-type | No |
| Auto start | Optional |
| Spark plug ignition | F7RTC/CHAMPION RN6YC/NGK BPR7ES |
| Spark plug ignition (type equivalents) | L7T/L7RTC/L8RTC/BPMR7A/RCJ6Y/HQT-2/P15Y/RCJ7Y/WSR6F |
| Display | No |
| Winding alternator engine | Copper |
| Type casing | Open |
| Length | 720 mm |
| Width | 560 mm |
| Height | 600 mm |
| Oil tank capacity | 1.1 l |
| With wheels | Yes |
| With handles | Yes |
| Net weight | 95 kg |
Package contents
- Generator;
- Plug;
- Packaging.
Packaging
| Weight | 95 kg |
|---|
