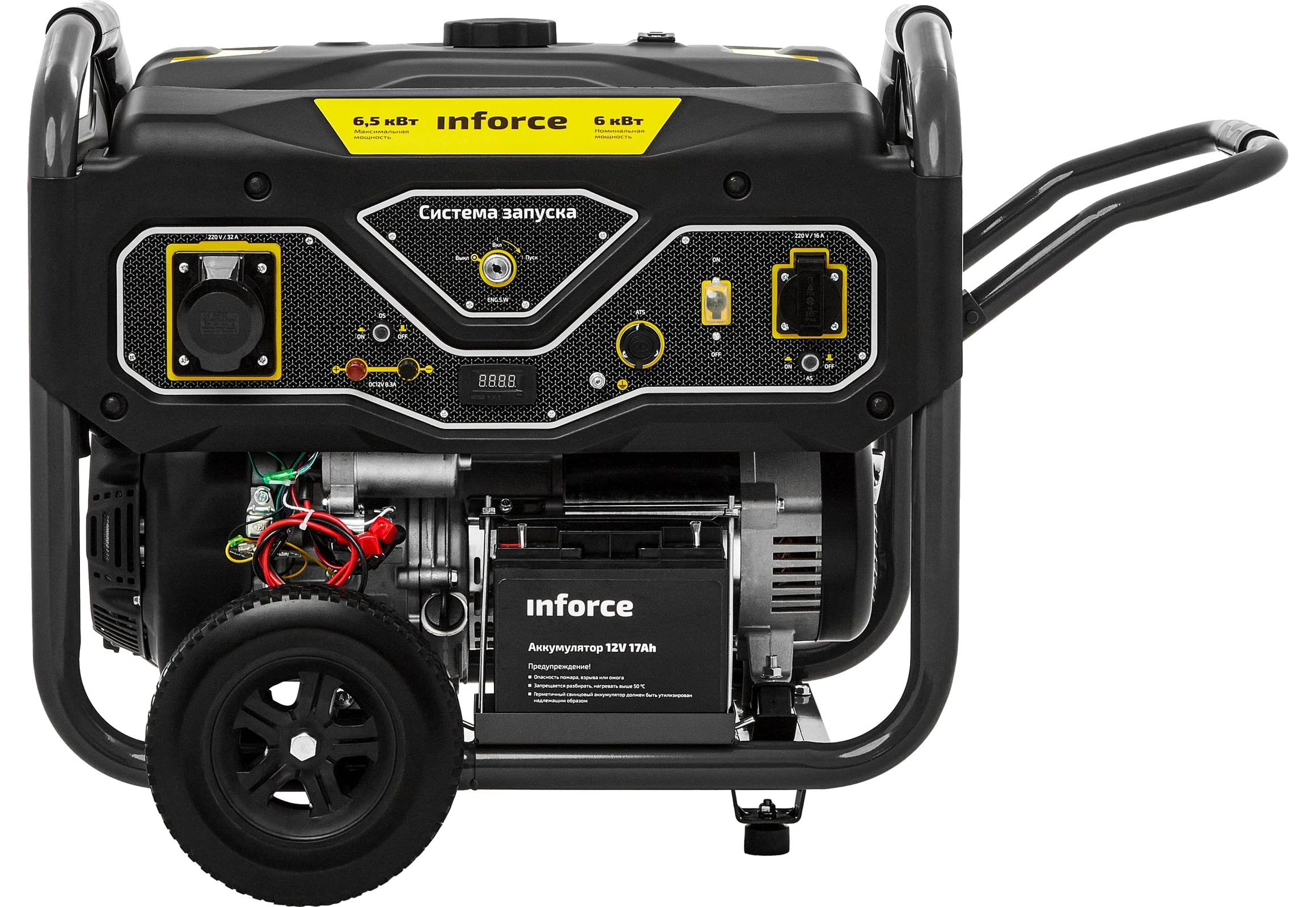

Gasoline generator GL 6500 04-03-15
220 VVoltage 6.5 kWMax power 6.5 kWMax power at 220 V
A 6.5 kW gasoline generator with an 8-pin ATS connector for automatic transfer. It backs up a house, a small site or a trip away from the mains, with fuel consumption of 285 g/kWh.
Description
The INFORCE GL 6500 gasoline generator, which can be connected to an automatic transfer switch, is a powerful power unit. It is intended for use as a backup power source away from the mains or in emergencies.
ATS connector type - 8 pin
The generator suits a country house, a camping trip or a small construction site. The maximum load is 6.5 kW.
Fuel consumption: 285 g/kWh.
Attention. Before operation, to avoid damage, remove the transport support at the rear of the alternator cover housing.
The ignition keys are under the tank cap.
Patented cooling system:
- new design of the engine cooling fins,
- materials with improved heat dissipation
The OHV layout reduces oil consumption, extends engine life and lowers the risk of cylinder distortion.
Specifications
| Type generator | Mobile |
|---|---|
| Type fuel | Gasoline |
| Voltage | 220 V |
| Starter | Recoil starter/electric starter |
| Max power | 6.5 kW |
| Max power at 220 V | 6.5 kW |
| Rated power at 220 V | 6 kW |
| Electrical outlets 380/220/12 V | -/2/1 pcs |
| Alternator | Synchronous |
| Battery V kit | Yes |
| Fuel tank capacity | 20 l |
| Fuel consumption | 2.7 l/h |
| Noise level | 82 dB |
| Speed | 3600 rpm |
| Motor/engine type | Four-stroke |
| Model engine | 190F |
| Manufacturer engine | Lutian |
| Engine displacement | 420 cm³ |
| Engine/motor power | 12 hp |
| IP rating | IP23 |
| Force current sockets 380/220/12 | -/16(32)/8.3 A |
| Control voltage | AVR |
| Indicator level fuel | No |
| Meter engine hours | No |
| 12 V output | No |
| Sensor oil | No |
| Euro connector Schuko 230V/10A | No |
| Euro connector Schuko 230V/16A | No |
| Heavy-duty connector CEE 230V/16A | No |
| Heavy-duty connector CEE 230V/32A | No |
| Heavy-duty connector CEE 380V/16A | No |
| Heavy-duty connector CEE 380V/32A | No |
| Container-type | No |
| Auto start | Optional |
| Spark plug ignition | F7RTC |
| Spark plug ignition (type equivalents) | F7TC/F7RTC/BPR7ES/RN6YC/WR5DC/F7RTS/RN9YC/WR7DC |
| Display | No |
| Winding alternator engine | Copper |
| Type casing | Open |
| Length | 720 mm |
| Width | 560 mm |
| Height | 600 mm |
| Oil tank capacity | 1.1 l |
| With wheels | Yes |
| With handles | Yes |
| Net weight | 92 kg |
Package contents
- Generator
- Packaging
Packaging
| Weight | 98.2 kg |
|---|
