Labels and markings on the product shown may differ from those on units supplied to your market.
IATS 50230SProfessional

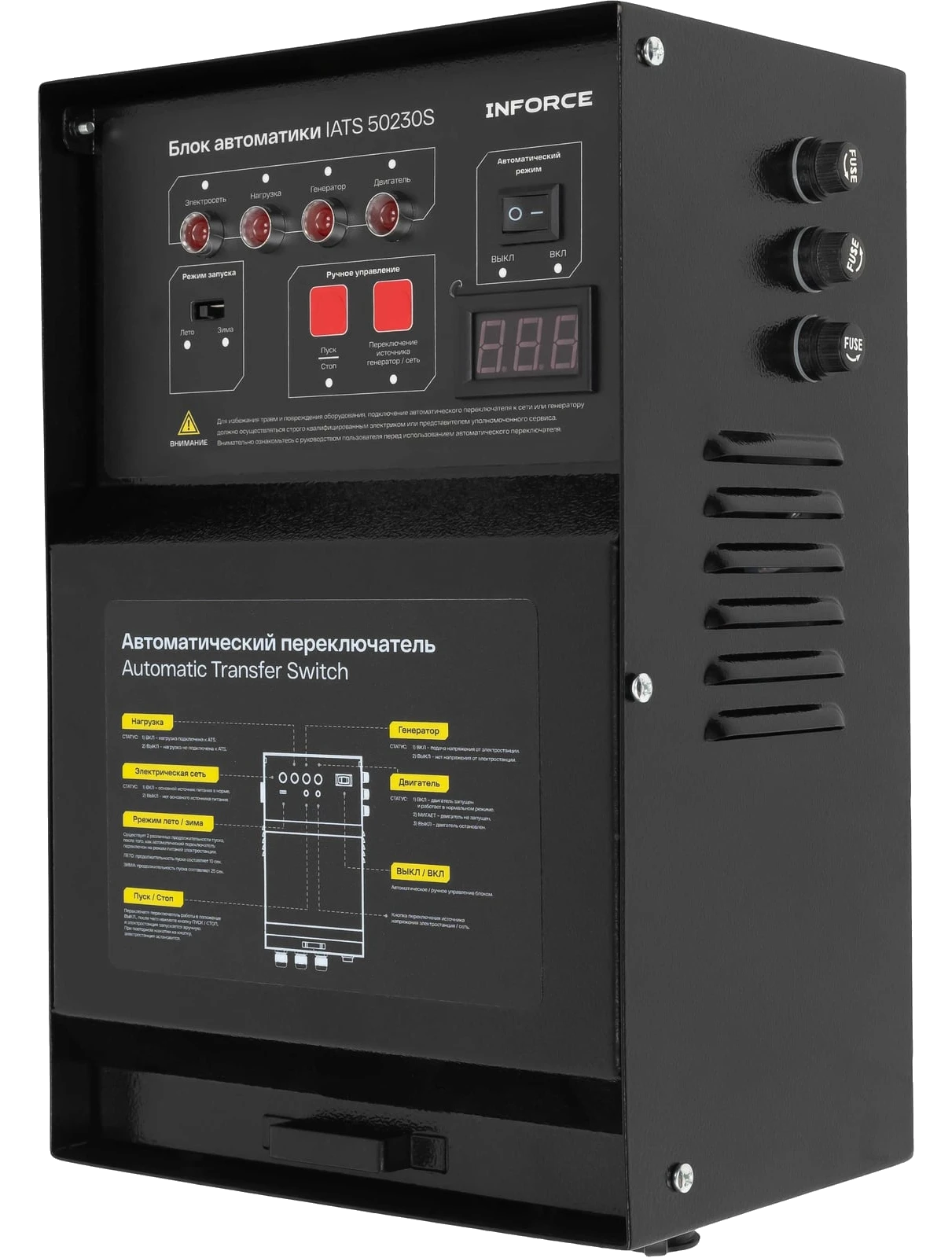

Automatic transfer switch IATS 50230S
220 VVoltage 9.2 kWMax power 50 AMax current
An automatic transfer switch that starts the generator set when the mains voltage drops, with programmable warm-up modes and standby charging of the onboard battery.
Description
The INFORCE IATS 50230S automatic transfer switch starts the generator set automatically if the voltage in the main supply drops. It has programmable warm-up modes, so the set starts reliably at any temperature. In standby the unit charges the onboard battery of the generator set to keep it ready for use.
Specifications
| Voltage | 220 V |
|---|---|
| Max power | 9.2 kW |
| Max current | 50 A |
| Rated current | 50 A |
| Operating temperature range | -20 to +55 °C |
| Dimensions (unpackaged) | 350x245x147 mm |
| Net weight | 5.1 kg |
| Kind | Automatic transfer switch (ATS) |
Package contents
- Automatic transfer switch – 1 pc.
- User manual – 1 pc.
Packaging
| Weight | 5.1 kg |
|---|
