Labels and markings on the product shown may differ from those on units supplied to your market.
MS1218EL-Sاحترافي

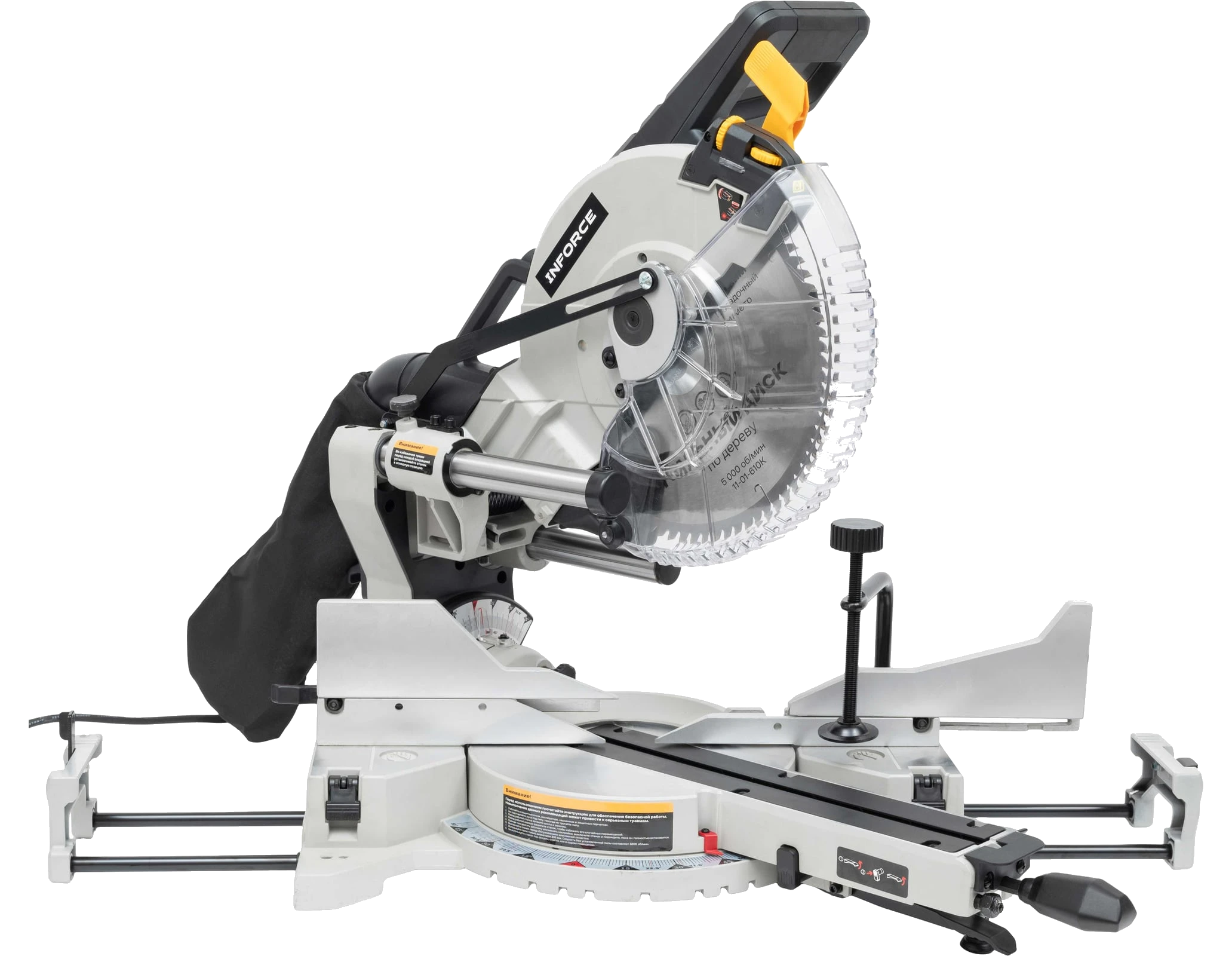

Miter saw MS1218EL-S
305 mmDisc diameter 230 VSupply voltage 1500 WPower
A professional sliding miter saw with dual bevel and a laser. Fixed rails let it stand right against a wall, and an electronic brake and soft start make it safer to run.
الوصف
The INFORCE MS1218EL-S is a professional sliding miter saw. It has dual bevel and a laser. The rail mechanism is unusual in that the rails stay put, so the saw can stand right against a wall and save space in the workshop. Table extensions and a clamp are included.
What the electronic brake gives you: the blade stops the moment the saw is switched off. Instead of 10-20 seconds of free rotation, the blade comes to a stop in 2-5 seconds. That sharply reduces the risk of injury from touching the blade after the power is off, when changing the blade or clearing chips. What soft start gives you:
- Greater safety: no jolt at start-up, and a steady start under load. On weak or long extension leads, and on low-voltage supplies, a powerful motor can pull the supply down and cause an overload. Soft start minimizes the inrush current, so the saw starts correctly in those conditions.
- Longer tool life: less wear on the mechanical parts, and less load on the supply and the motor windings.
- Comfortable work: less noise and vibration at start-up.
المواصفات
| Pull-cut function | Yes |
|---|---|
| Disc diameter | 305 mm |
| Motor/engine type | Brushed |
| Supply voltage | 230 V |
| Power | 1500 W |
| Diameter | 12 inch |
| Disc bore diameter | 30 mm |
| Max cutting width at 90° | 300 mm |
| Max cutting width at 45° | 215 mm |
| Max cutting depth at 90° | 107 mm |
| Max cutting depth at 45° | 71 mm |
| Cutting depth adjustment | No |
| Suitable for metal work | No |
| Laser guide | No |
| Work light | No |
| Protective guard | No |
| Vacuum connection | No |
| Constant speed under load | No |
| Soft start | No |
| Speed control | No |
| Max speed | 3200 rpm |
| Table adjustment left/right | 50/50 ° |
| Saw tilt left/right | 45/45 ° |
| Cable length | 3 m |
| Packaging | Box |
| Dimensions (unpackaged) | 770x710x1040 mm |
| Net weight | 23 kg |
محتويات العبوة
- Miter saw – 1 pc.
- Clamp – 1 pc.
- Dust bag – 1 pc.
- Hex key – 1 pc.
- Table extension – 2 pcs.
- User manual – 1 pc.
- Bevel lock handle assembly – 1 pc.
- Miter lock handle assembly – 1 pc.
- INFORCE saw blade for wood 305 × 30 × 80 – 1 pc.
التغليف
| الوزن | 38.05 kg |
|---|
