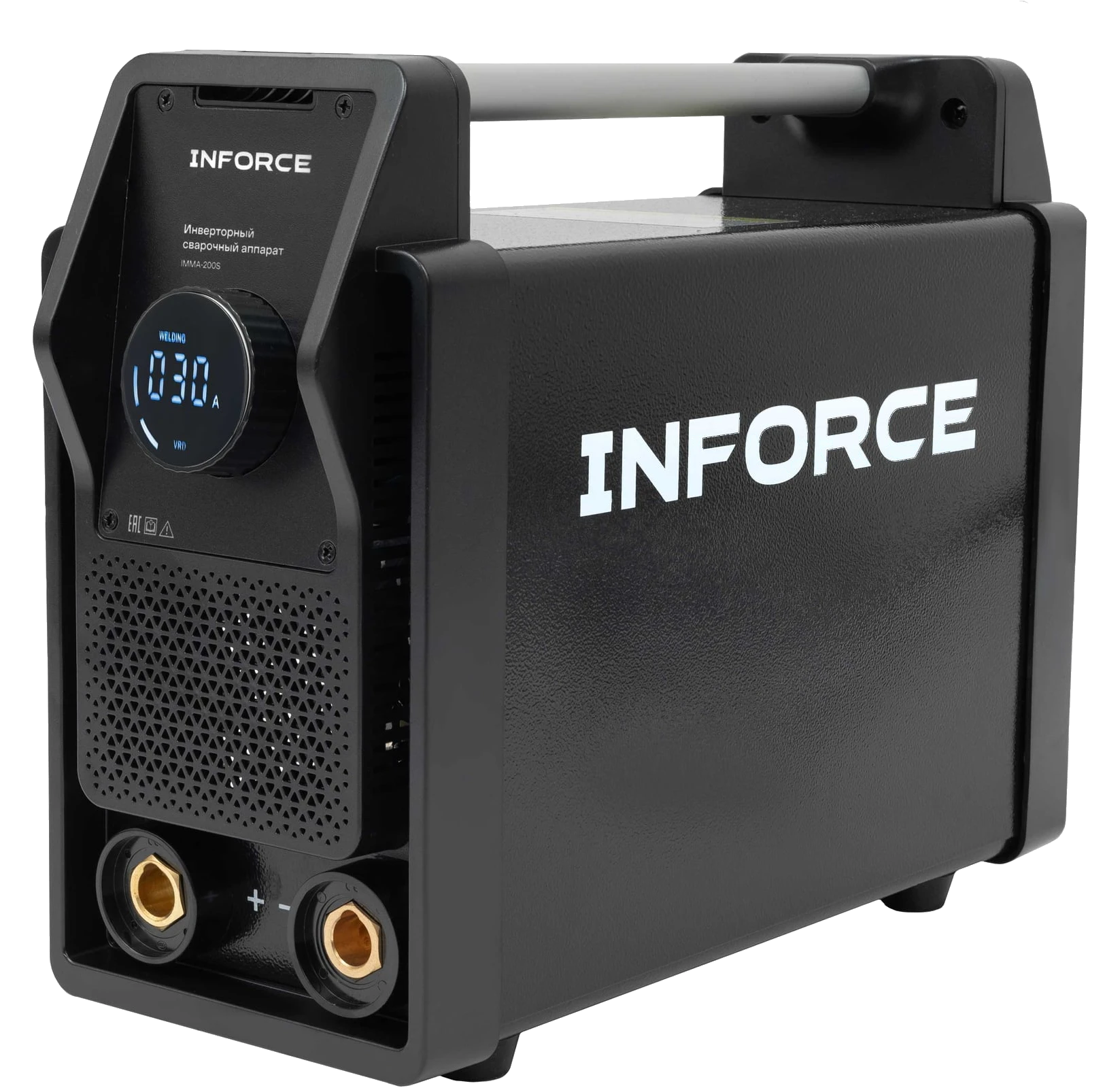

Inverter welding machine IMMA-200S
220 VVoltage 6.92 kWMax power 10 AMin current
An inverter welding machine for manual arc welding with covered electrodes and for DC TIG welding with the arc struck by touching the workpiece.
الوصف
The INFORCE IMMA-200S inverter welding machine is intended for manual arc welding with covered electrodes, and for DC TIG welding with the arc struck by touching the workpiece.
المواصفات
| Type | Inverter |
|---|---|
| Voltage | 220 V |
| Max power | 6.92 kW |
| Min current | 10 A |
| Max current | 200 A |
| Operating mode | DC |
| Duty cycle | 20 % |
| IP rating | IP21 |
| Mains plug included | Yes |
| Low-voltage operation | Down to 190 V |
| Min input voltage | 186 V |
| TIG welding | Yes |
| Working temperature ambient environment | -10 to +45 °C |
| Boost arc | Adjustable |
| Hot start | Adjustable |
| Certificate NAKS | No |
| No-load voltage | 59 V |
| Presence of digital indicator welding current | No |
| Presence of synergy | No |
| Anti-stick | No |
| Display | No |
| Presence of remote control DN | No |
| With starter-charger device | No |
| Case | No |
| Dimensions (unpackaged) | 350x138x270 mm |
| Net weight | 4.65 kg |
محتويات العبوة
- Inverter welding machine – 1 pc.
- Ground cable, 2 m – 1 pc.
- Cable with electrode holder, 2.5 m – 1 pc.
التغليف
| الوزن | 6 kg |
|---|
