Labels and markings on the product shown may differ from those on units supplied to your market.
06-19-11شبه احترافي

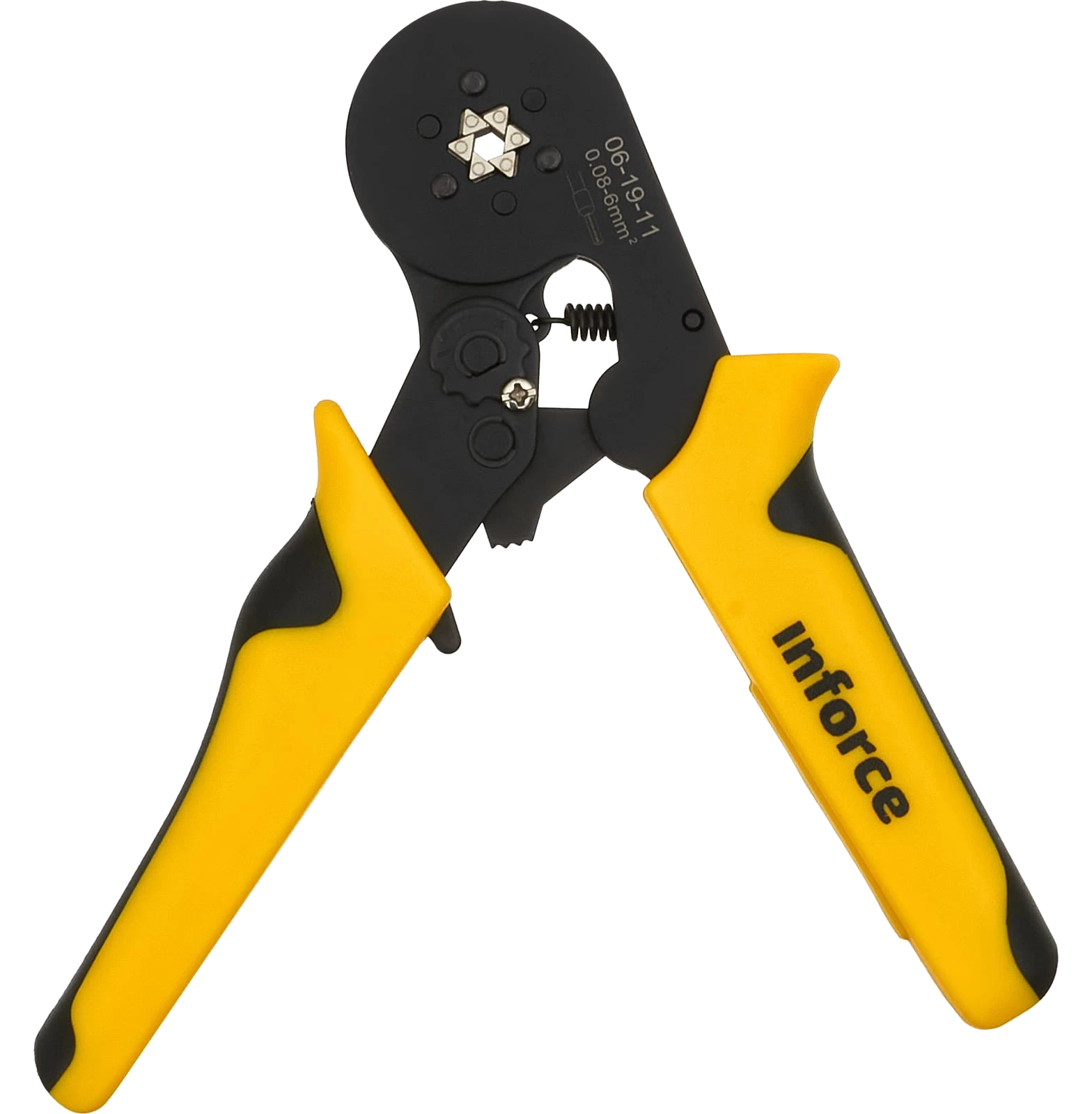

Hexagonal crimping pliers 0.08-6 mm² 06-19-11
0.08-6 mm²Insulated terminal cross-section 0.08 mm²Min insulated terminal cross-section 6 mm²Max insulated terminal cross-section
Hex crimping pliers for 0.08-6 mm²: a single die covers 15 ferrule sizes and the ratchet mechanism delivers an even crimp.
الوصف
The INFORCE hex crimping pliers 0.08-6 mm² use a single die to crimp ferrules in 15 sizes. The ratchet mechanism produces an even crimp. A spring opens the handles automatically once the cycle is complete.
The two-component handles do not slip in the palm, and the finger rests transfer the full force to the tool. The pliers are made of high-quality carbon steel with an anti-corrosion coating, which gives them an extended service life.
المواصفات
| Type | For ferrules |
|---|---|
| Cross-section wire for removing insulation | No mm² |
| Min cross-section wire for removing insulation | No mm² |
| Max cross-section wire for removing insulation | No mm² |
| Removal insulation | No |
| Pipe threader | No |
| Insulated terminal cross-section | 0.08-6 mm² |
| Min insulated terminal cross-section | 0.08 mm² |
| Max insulated terminal cross-section | 6 mm² |
| Uninsulated (Al) terminal wire range | 0.08-6 mm² |
| Min uninsulated (Al) terminal wire size | 0.08 mm² |
| Max uninsulated (Al) terminal wire size | 6 mm² |
| Bare terminal cross-section (Cu) | 0.08-6 mm² |
| Min bare terminal cross-section (Cu) | 0.08 mm² |
| Max bare terminal cross-section (Cu) | 6 mm² |
| Ferrule terminal cross-section | 0.08-6 mm² |
| Min ferrule terminal cross-section | 0.08 mm² |
| Max ferrule terminal cross-section | 6 mm² |
| Ferrule (NSHVI2) wire range | 0.08-6 mm² |
| Min ferrule (NSHVI2) wire size | 0.08 mm² |
| Max ferrule (NSHVI2) wire size | 6 mm² |
| Terminal wire range | No mm² |
| Min terminal wire size | 0 mm² |
| Max terminal wire size | 0 mm² |
| Terminals | No |
| NSHVI/NSHVI(2) ferrules | No |
| Insulated terminals & sleeve | No |
| Copper and aluminium terminals | No |
| Min size bolts for bolt cutting | No |
| Max size bolts for bolt cutting | No |
| Size bolts for bolt cutting | No |
| Connectors RJ | No |
| RJ connector type | No (no RJ socket) |
| For RG cable | No |
| Connectors F & BNC | No |
| Connector Dupont 2.54 | No |
| Crimp profile | Hex |
| Dimensions (unpackaged) | 182x87x32 mm |
| Net weight | 0.4 kg |
محتويات العبوة
- Hex crimping pliers - 1 pc.
- Packaging - 1 pc.
التغليف
| الوزن | 0.44 kg |
|---|
