IBCV-500L-3P2/1400احترافي

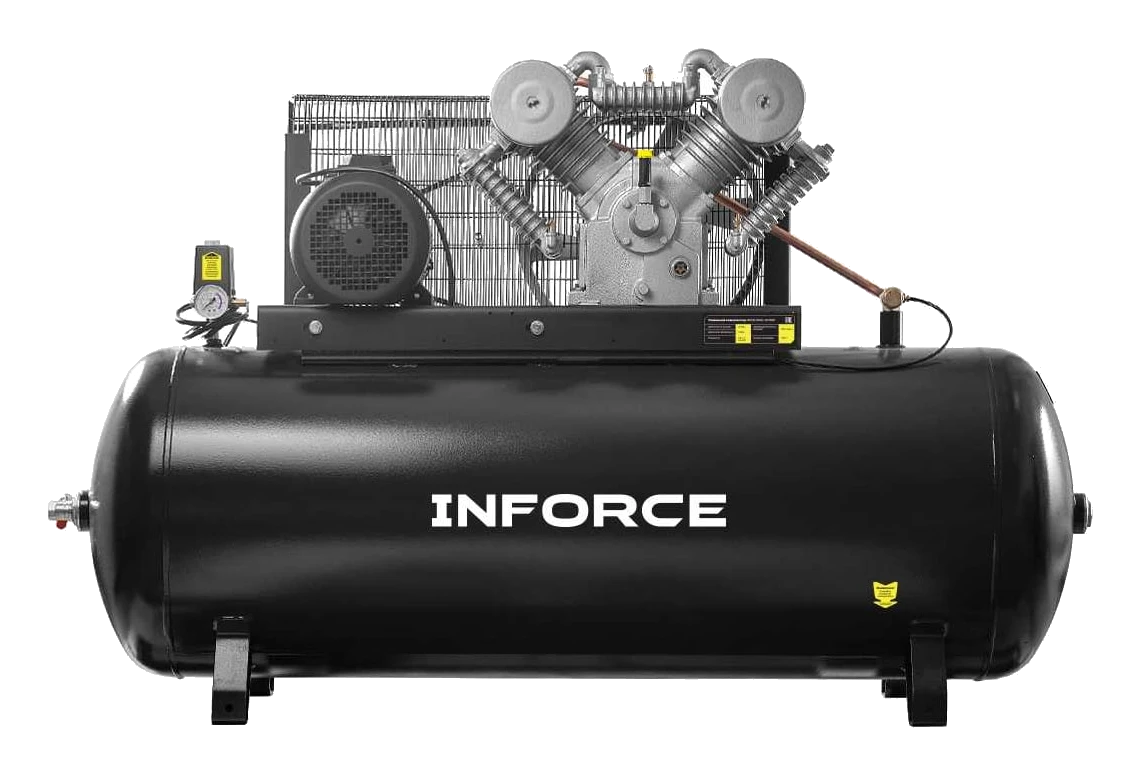

Belt-driven compressor IBCV-500L-3P2/1400
380 VVoltage 1400 l/minPerformance 12 barWorking pressure
A belt-driven compressor with a 500-liter receiver for equipment that runs on compressed air. It tolerates overloads and high ambient temperatures and has a long service life.
الوصف
The INFORCE IBCV-500L-3P2/1400 belt-driven compressor supplies compressed air to equipment of all kinds. This model tolerates overloads and high ambient temperatures. Its long service life suits it to small plants as well as service centers. The compressor itself weighs 350 kg; with the pallet and crate, 450 kg.
المواصفات
| Voltage | 380 V |
|---|---|
| Performance | 1400 l/min |
| Working pressure | 12 bar |
| Speed | 2890 rpm |
| Connection diameter | 3/4 |
| Performance on input | 1400 l/min |
| Performance on output | 1120 l/min |
| Receiver tank volume | 500 l |
| Frequency | 50 Hz |
| Compressor type | Belt drive |
| Power | 7.5 kW |
| Power | 10.2 hp |
| Transport wheels | No |
| Lubrication type | Oil-lubricated |
| Connection type | Threaded |
| Frequency converter | No |
| Number of outlets | 1 |
| Motor/engine type | Electric |
| Cylinders | 4 |
| Steps | 2 |
| Shape | Horizontal |
| Cable power V kit | Yes |
| Dimensions (unpackaged) | 1980x610x1250 mm |
| Net weight | 350 kg |
محتويات العبوة
- Belt-driven compressor - 1 pc.
- Air filter - 2 pcs.
- User manual - 1 pc.
التغليف
| الوزن | 350 kg |
|---|
