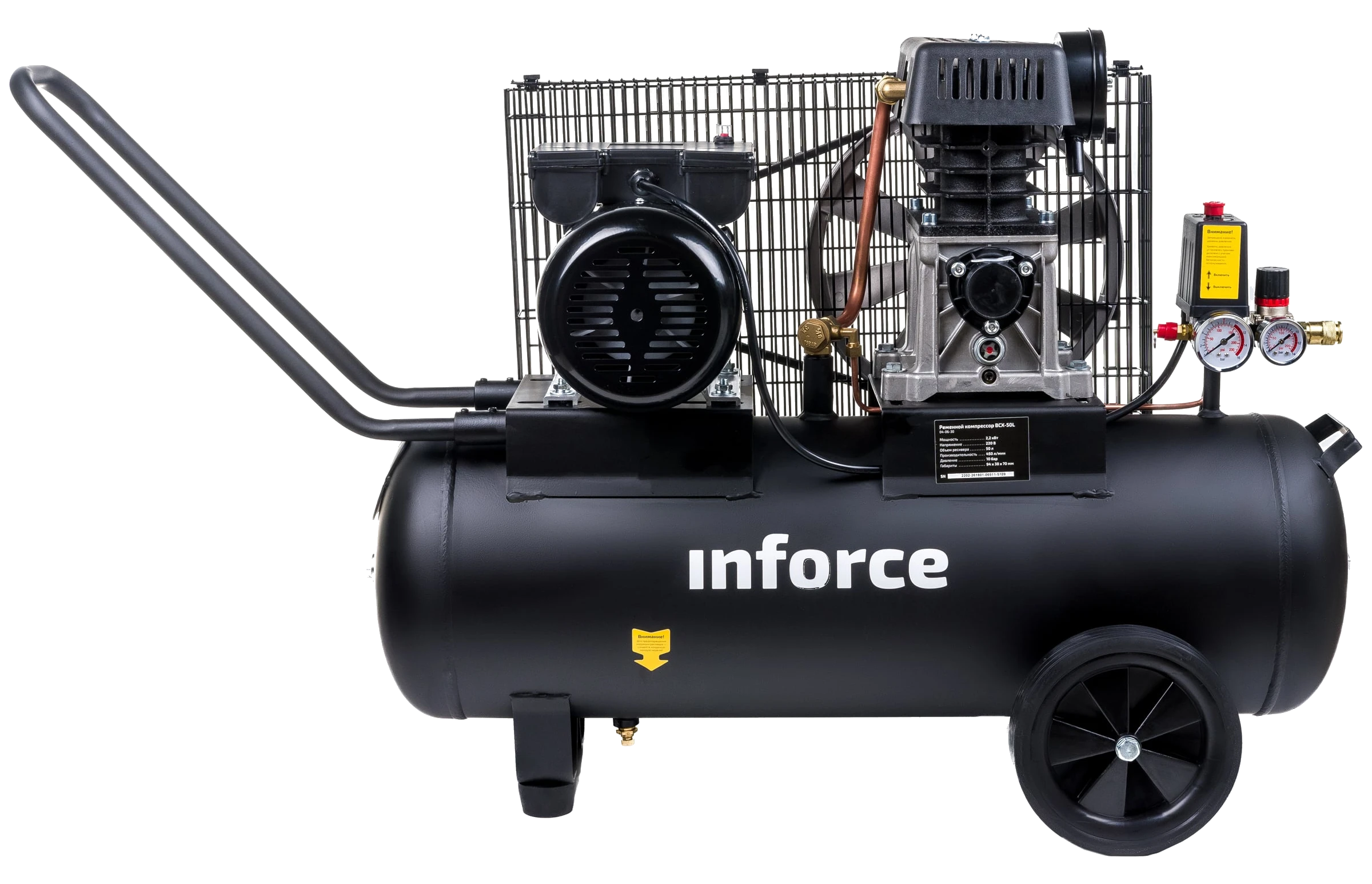

Belt-driven compressor BCX-50L 04-06-30
220 VVoltage 450 l/minPerformance 8 barWorking pressure
A belt-driven 50 l compressor with two outlets for running two pneumatic tools at once. The belt drive is built for long duty cycles on a 220 V supply.
الوصف
The INFORCE BCX-50L belt-driven compressor is used to produce compressed air in large volumes and to supply it to pneumatic equipment. The unit runs from a 220 V supply.
The compressor has two outlets, so up to two pneumatic tools can be connected at the same time. This model is built for reliability and a long service life.
The threaded drain valve makes it easier to release pressure.
Materials:
- Cylinder: cast iron;
- Piston: aluminum alloy;
- Head: aluminum alloy;
- Tubes: copper;
- Induction motor winding: aluminum.
المواصفات
| Voltage | 220 V |
|---|---|
| Performance | 450 l/min |
| Working pressure | 8 bar |
| Speed | 2800 rpm |
| Connection diameter | 1/4 |
| Performance on input | 450 l/min |
| Performance on output | 360 l/min |
| Receiver tank volume | 50 l |
| Frequency | 50 Hz |
| Compressor type | Belt drive |
| Power | 2.2 kW |
| Power | 3 hp |
| Transport wheels | No |
| Lubrication type | Oil-lubricated |
| Connection type | Rapid (EURO) |
| Frequency converter | No |
| Number of outlets | 2 |
| Motor/engine type | Electric |
| Cylinders | 2 |
| Steps | 1 |
| Shape | Horizontal |
| Cable power V kit | Yes |
| Noise level, min | 85 dB |
| Dimensions (unpackaged) | 940x380x720 mm |
| Net weight | 56 kg |
محتويات العبوة
- Compressor
- Operating manual
- Packaging
التغليف
| الوزن | 56 kg |
|---|
