Labels and markings on the product shown may differ from those on units supplied to your market.
04-06-23احترافي

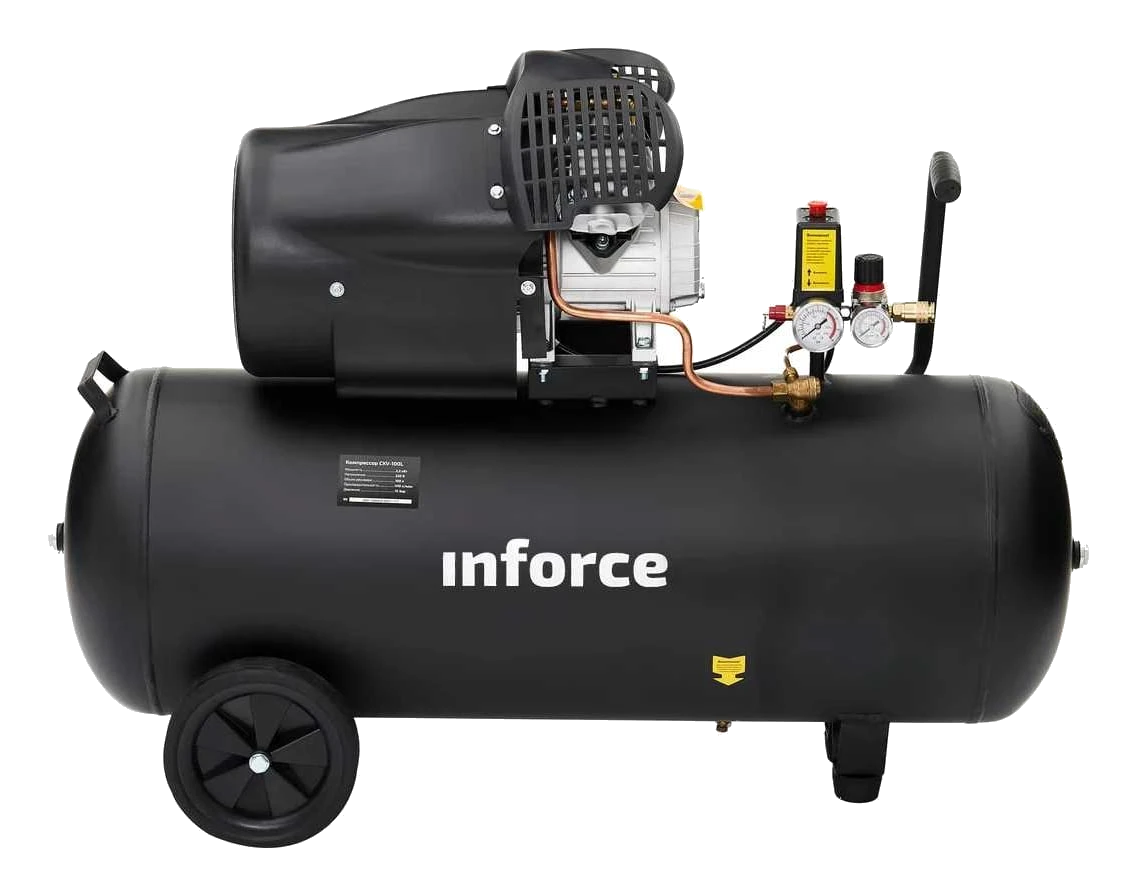

Air compressor CXV-100L 04-06-23
220 VVoltage 410 l/minPerformance 10 barWorking pressure
A 100 l compressor for a garage, workshop or small production floor. The large receiver holds pressure steady and the wheels let one person reposition the unit.
الوصف
The INFORCE CXV-100L compressor suits workshops, service centers and small production facilities. It can be used for painting work and to run pneumatic tools.
For safe work at a lower noise level the motor is enclosed in a shroud. The large receiver and the pair of wheels let you get the most out of the model within a garage or workshop.
Materials:
- Cylinder: cast iron;
- Piston: aluminum alloy;
- Head: aluminum alloy;
- Tubes: copper;
- Induction motor winding: copper.
المواصفات
| Voltage | 220 V |
|---|---|
| Performance | 410 l/min |
| Working pressure | 10 bar |
| Speed | 2850 rpm |
| Connection diameter | 1/4 |
| Performance on input | 410 l/min |
| Performance on output | 300 l/min |
| Receiver tank volume | 100 l |
| Frequency | 50 Hz |
| Compressor type | Piston, coaxial (direct drive) |
| Power | 2.2 kW |
| Power | 3 hp |
| Transport wheels | No |
| Lubrication type | Oil-lubricated |
| Connection type | Rapid (EURO) |
| Frequency converter | No |
| Number of outlets | 2 |
| Motor/engine type | Electric |
| Cylinders | 2 |
| Steps | 1 |
| Cable power V kit | Yes |
| Noise level, min | 85 dB |
| Protection from overheating engine | No |
| Type compressor head | V-type |
| Net weight | 55.5 kg |
| Dimensions (unpackaged) | 1090x380x800 mm |
محتويات العبوة
- Compressor;
- Packaging.
التغليف
| الوزن | 56.4 kg |
|---|
